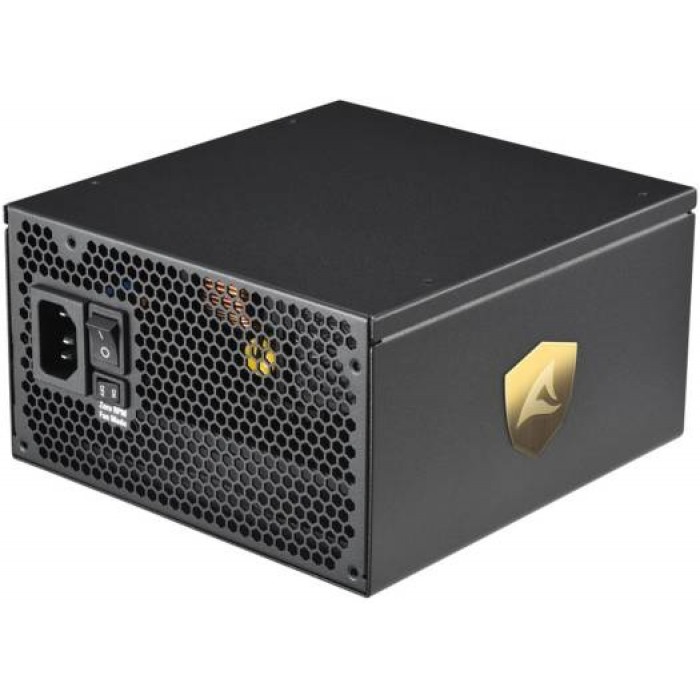

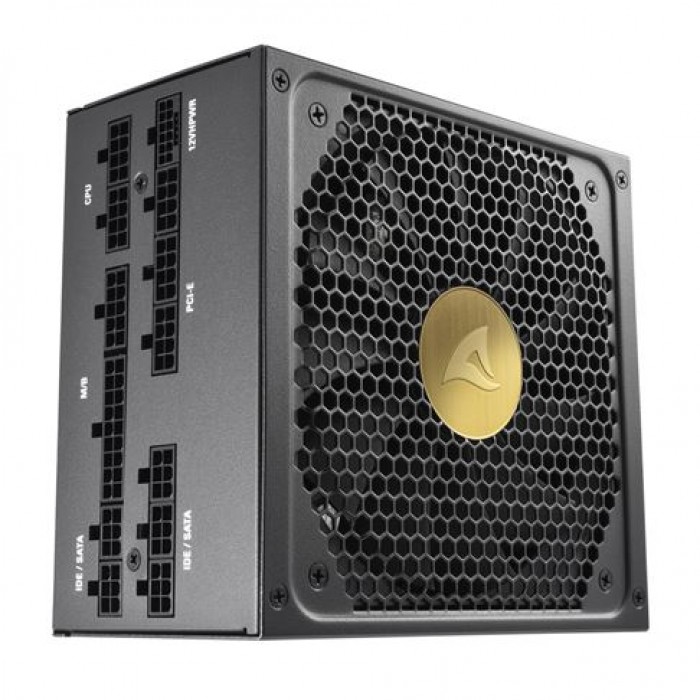

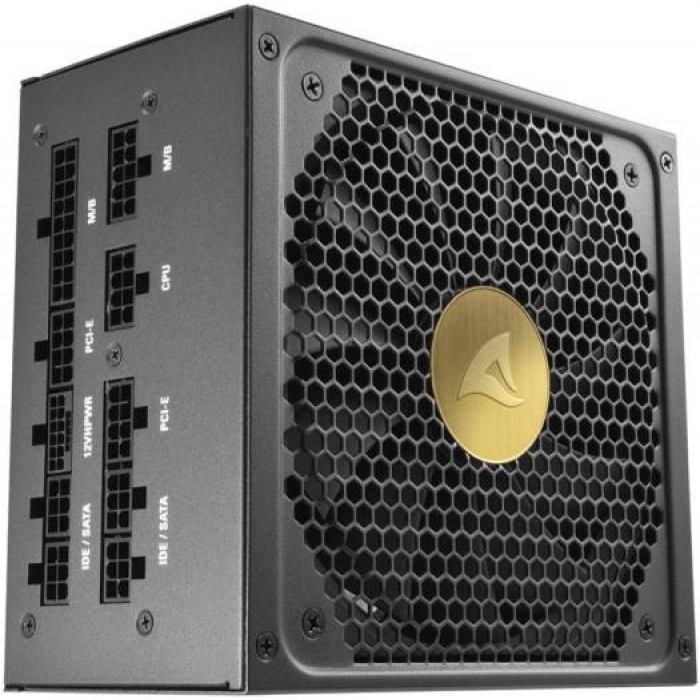

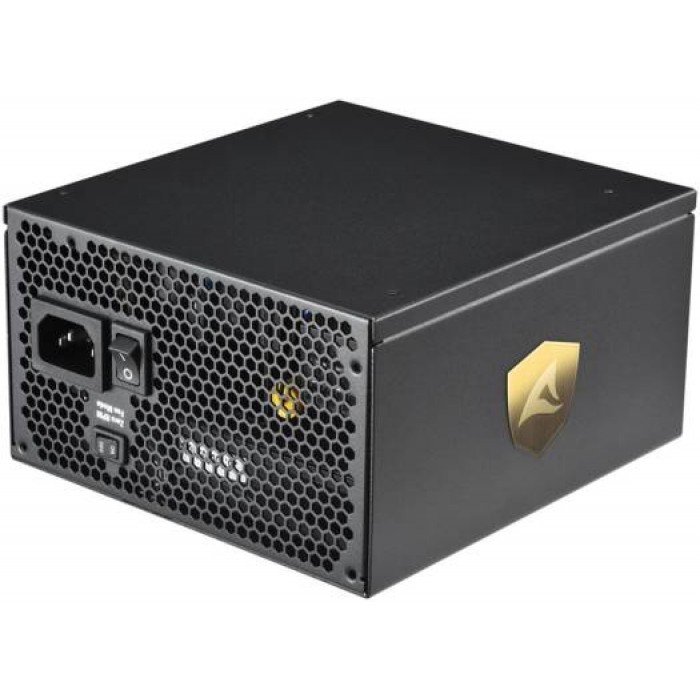

Sharkoon Power Supply Rebel P30 Gold 1000W

Specifications:

• Product Number: Rebel P30 Gold
• 80 PLUS Certification: 80 PLUS Gold
• Form Factor: ATX 3.0
• Continuous Power: 1,000 W
• ErP Compliant: ✓
• Technology: LLC + DC/DC
• Japanese Primary Capacitors: ✓
• All Japanese Capacitors: ✓
• MTBF: Min. 100,000 Hours
• Operating Temperature: 0°C - 50°C
• Standby Power Consumption: < 0.5 W
• Weight without cables: 1.7 kg
• Dimensions (L x W x H): 150 x 160 x 86 mm
• Housing Color: Black

Input

• Voltage: 100 - 240 VAC
• Frequency: 50 - 60 Hz
• Input Current (110/230 V): 12 A / 6 A

Output

• 12 V Rail(s): 1
• Load 3.3 V: 24 A
• Load 5 V: 24 A
• Max. Combined Power 3.3V+5V: 120W
• Load 12 V1: 83.3 A
• Max. Combined Power 12 V: 1,000 W
• Load 5 VSB: 3 A
• Load -12 V: 0.5 A
• 12VHPWR Load: 600 W

Cables and Connectors

• Cable Configuration: Fully Modular
• Flat Cables: ✓
• Maximum Cable Length: 100 cm
• Length of Mainboard Cable: 62 cm
• Length of CPU Cable: 73 cm
• Length of 12VHPWR Cable: 62 cm
• Length of PCIe Cable: 55 cm + 15 cm
• Cable Length to First Peripheral: 55 cm
• 20+4-Pin Mainboard Connector: 1
• 4+4-Pin CPU Connector: 1
• 8-Pin CPU Connector: 1
• 6+2-Pin PCIe Connector: 4
• 12VHPWR Connector: 1
• SATA Connector: 12
• IDE Connector: 2 (via Adapter)
• Floppy Connector: 1 (via Adapter)
• Fan
• Fan Size: 135 mm
• Bearing Type: Fluid Dynamic Bearing
• Protections:
• OCP (Over-Current Protection): ✓
• OVP (Over-Voltage Protection): ✓
• UVP (Under-Voltage Protection): ✓
• SCP (Short-Circuit Protection): ✓
• OTP (Over-Temperature Protection): ✓
• OPP (Over-Power Protection): ✓
• Safety Certifications:
• CE: ✓
• FCC: ✓
• UKCA: ✓
• CB: ✓

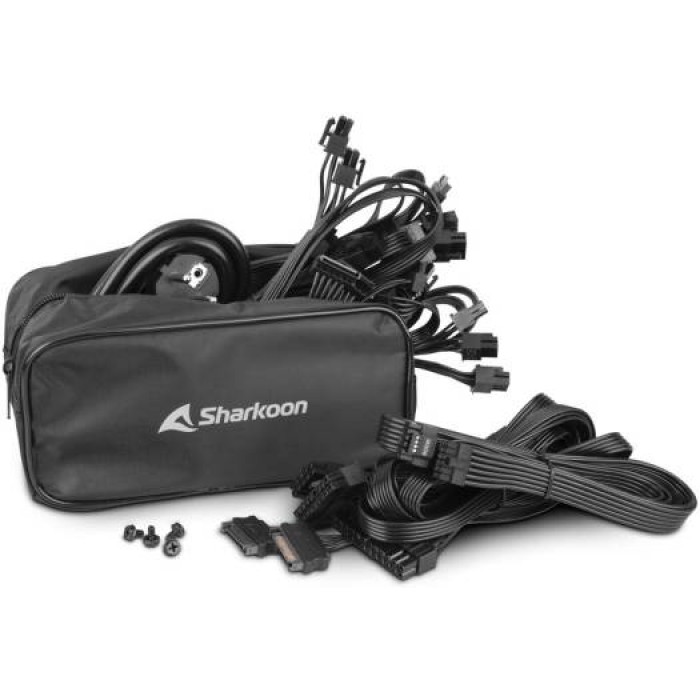

• Package Contents:
• Power Cord
• Set of Modular Cables
• Cable Bag
• Mounting Screws
